조선소 / 변압기 운반용

상세 사양

F 100

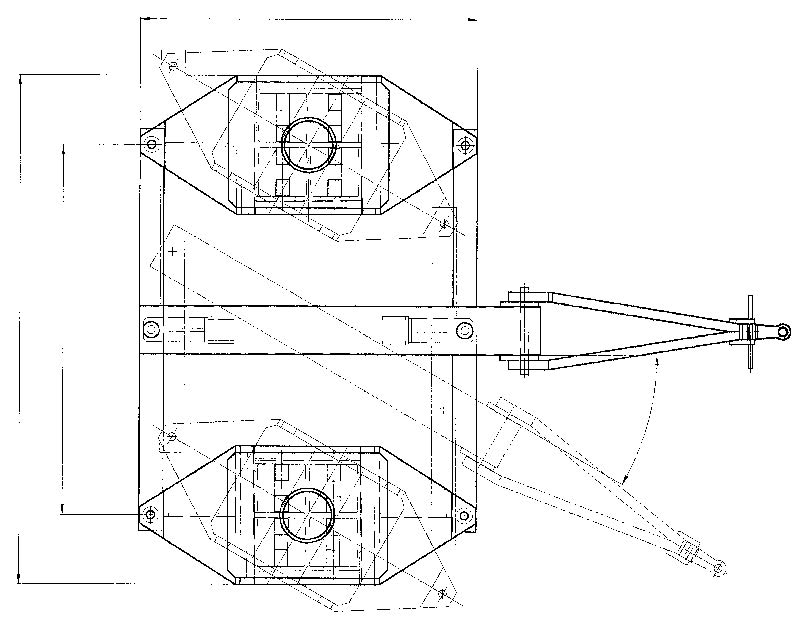

TL 100

트롤리 뒤부분F 100+ 앞부분 TL 100

100 톤

100 톤

8 개 특수강화바퀴(Ø 300 x 300 mm), loading height

430 mm

430 mm

Load bearing area per cassette
with fastening thread M 16

750 x 780 mm

Spacer rod (width) adjustable from

870-2300 mm

2 rotating platforms Ø 295 mm with axial thrust bearing,
rotating steering angle as a tandem unit

±35°

Width (other dimensions by special request)

2300 mm

Handlebar with pulling eye

1650 mm

중량

1300 kg

1800 kg

총 운반중량 F 100 + TL 100

200톤
